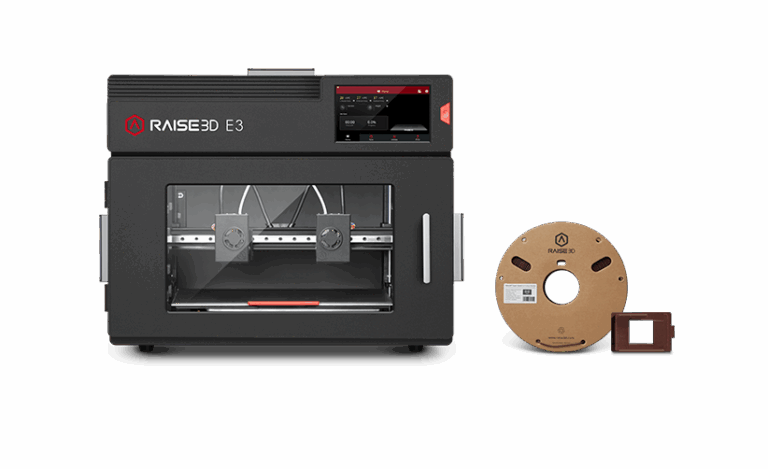

E3

An easy-to-use, durable desktop 3D printer ready to improve precision standards, scale production, and add a powerful new manufacturing resource

The Raise3D E3 IDEX printer delivers precise, stable, and fast prints of up to 200 mm/s for composite materials and TPU, perfect for prototyping and end-use part production. Built for diverse manufacturing needs, the E3 features the Flexible Filament Auxiliary Feeder and composite filament print head, suited for printing TPU, composite materials, and parts with specific surface finishes.

Reshape the boundaries of manufacturing with the E3: Elastic, Engineering-grade, Expandable.

Choose the E3 to:

  • Boost your production
  • Experience reliable flexible filament printing
  • Print end-use parts with excellent surface finish

IDEX (Independent Dual Extruders) - Multiple Prints Simultaneously

Mirror Mode

Produce 3D models and their inverse simultaneously, increasing productivity and reducing print time

Duplication Mode

Use both extruders in synchronized printing, doubling production capabilities.

Faster, More Reliable Printing of Flexible Filaments, with Broader Compatibility

When equipped with Raise3D’s Flexible Filament Auxiliary Feeder, the E3 3D printer achieves high-speed printing of flexible filaments at up to 200 mm/s – with greater success rates and extended compatibility across a wider range of hardness levels, including TPU-95A, TPU-90A, TPU-80A, and more.

  • New Raise3D Flexible Filament Auxiliary Feeder

Engineered with Performance in Mind for Composite Filaments

With the optional composite filament print head, the E3 supports a variety of composite filaments, including PET CF, PET GF, and PPS CF. It reliably handles complex prints with these filaments, ensuring a smooth and consistent printing process. Combined with E3’s Pro Ironing feature and the latest Hyper Speed PLA Pro filament, expect highly precise parts with excellent surface finishes.

  • Composite filament printing capability
  • Hyper Speed PLA Pro Filament and Pro Ironing

Large Build Volume

Safety Features

Opening a door is detected automatically, immediately pausing the print and keeping users safe.

Up to

Single Extruder Print: 330 × 240 × 240 mm (13 × 9.4 × 9.4 inch)
Dual Extruder Print: 295 × 240 × 240 mm (11.6 × 9.4 × 9.4 inch)

  • Large build volume for bigger prints
  • More options for designs
Hyper Core: PPA CF/ PPA GF/ ABS CF Hyper Speed: PLA/ ABS/ PETG CF/ PET CF/ PLA Pro Industrial: PPA CF/ PPA GF/ PET CF/ PET GF/ PETG ESD/ PET Support/ PPA Support/ PPS CF/ PA12 CF+ Premium: PLA/ ABS/ ASA/ PETG/ PC/ TPU-95A/ PVA+ Flexible Double-sided PEI Build Plate (Default), Flexible Steel Plate with BuildTak (Available)

An IDEX Printer with a Flexible Build Plate

Easily remove prints from the flexible build plate while minimizing potential print damage to quickly return to printing

Seamless Workflow, Ultimate Connectivity

NXP ARM Cortex-A9 Quad 1GHz Controller

Compatible with a Variety of Filaments up to 300℃

PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill

Intuitive User Experience

Visual Interface / Rapid Reviewing / Visual Print Progress / Full Adjustment Control

The Best IDEX 3D Printer to Never Lose a Print

Dependable and accurate optical run-out sensors automatically pause the print when the printer is out of filament.

  • When filament runs out, a red light flashes and the print is paused. Then, users simply add filament and press resume.
  • All types of filaments can be detected, regardless of color, material, or hardness.

No longer will sudden lapses in power ruin a print. Power loss recovery allows users to print worry-free.

  • Automatically stores task progress prior to power failure.
  • Seamlessly resumes the most recent task after power is restored.

HEPA Air Filtration

Environmentally friendly.

Designed to silently remove nano-particles.

Technical Specifications

GENERAL

Build Volume (W×D×H)

Single Extruder Print:
13×9.4×9.4 inch / 330×240×240 mm

Dual Extruder Print:
11.6×9.4×9.4 inch / 295×240×240 mm

Machine Size (W×D×H)

23.9×23.5×18.3 inch / 607×596×465 mm

Print Technology

FFF

Print Head System

Independent Dual Extruders

Filament Diameter

1.75 mm

XYZ Step Size

0.78125, 0.78125, 0.078125 micron

Print Head Travel Speed

30 – 150 mm/s

Build Plate

Flexible Steel Plate with Buildtak

Max Build Plate Temperature

110 ℃

Heated Bed Material

Silicone

Build Plate Leveling

Mesh-leveling with Flatness Detection

Supported Materials

PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill

Layer Height

0.02 – 0.25 mm

Nozzle Diameter

0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)

Hot End

V3P (V3 hotend with PTFE version)

Max Nozzle Temperature

300 ºC

Connectivity

Wi-Fi, LAN, USB port, Live camera

Noise Emission (Acoustic)

＜50 dB(A) when building

Operating Ambient Temperature

15-30 ºC, 10-90% RH non-condensing

Storage Temperature

-25 to 55℃, 10-90% RH non-condensing

Technical Certifications

CB, CE, FCC, RoHS, RCM

Filter

HEPA filter with activated charcoal

Electrical

Power Supply Input

100-240 V AC, 50/60 Hz 230 V @2 A

Power Supply Output

24 V DC, 350 W

Software

Slicing Software

ideaMaker

Supported File Types

STL/ OBJ/ 3MF

Supported OS

Windows/ macOS/ Linux

Machine Code Type

GCODE

Printer Controller

User Interface

7-inch Touch Screen

Network

Wi-Fi, Ethernet

Resume Print after Power Outage

Firmware recording, no need for battery installation.

Screen Resolution

1024×600

Motion Controller

Atmel ARM Cortex-M4 120MHz FPU

Logic Controller

NXP ARM Cortex-A55 Quad 2 GHz

Memory

2GB

Onboard Flash

16GB

OS

Embedded Linux

Ports

USB 2.0×2, Ethernet×1
